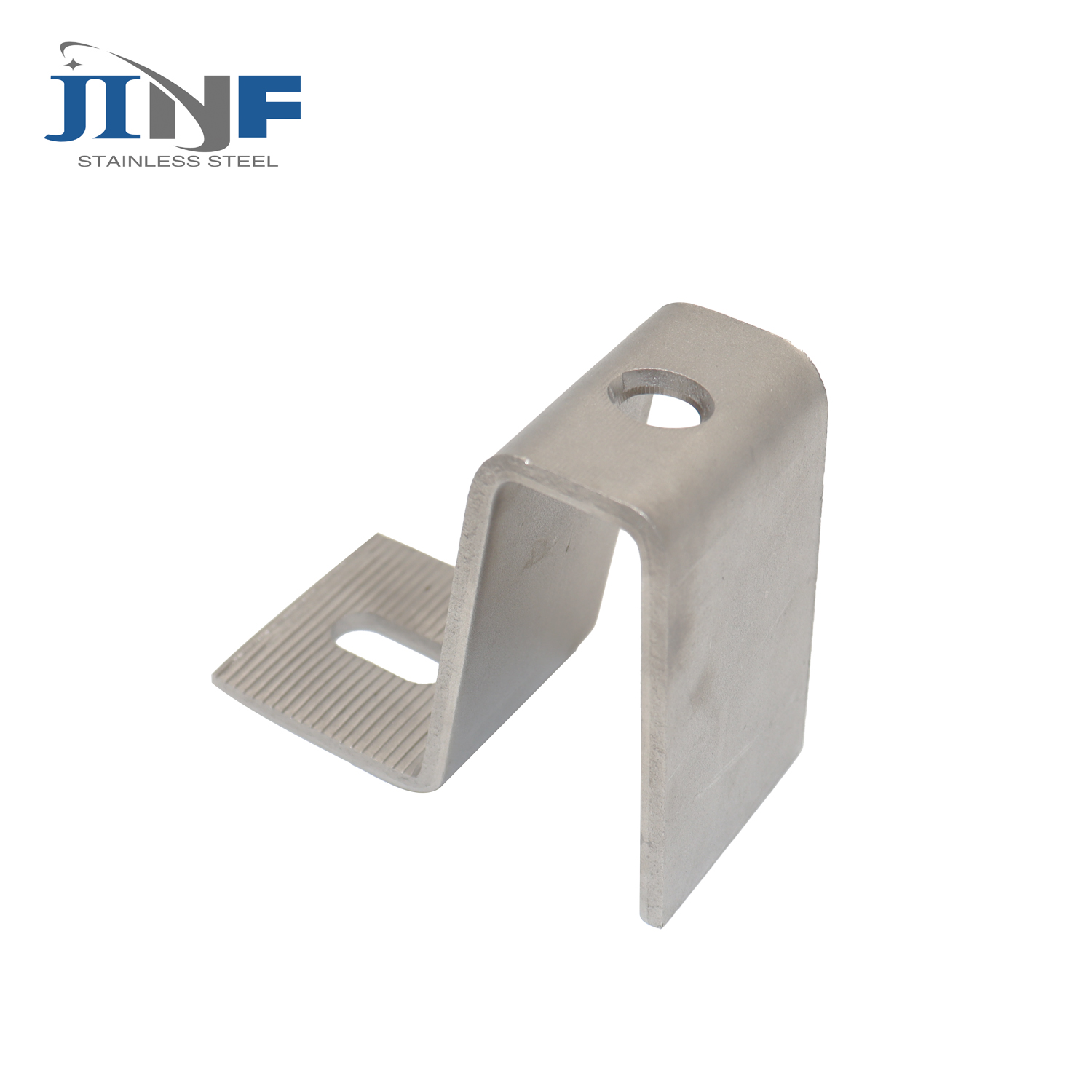

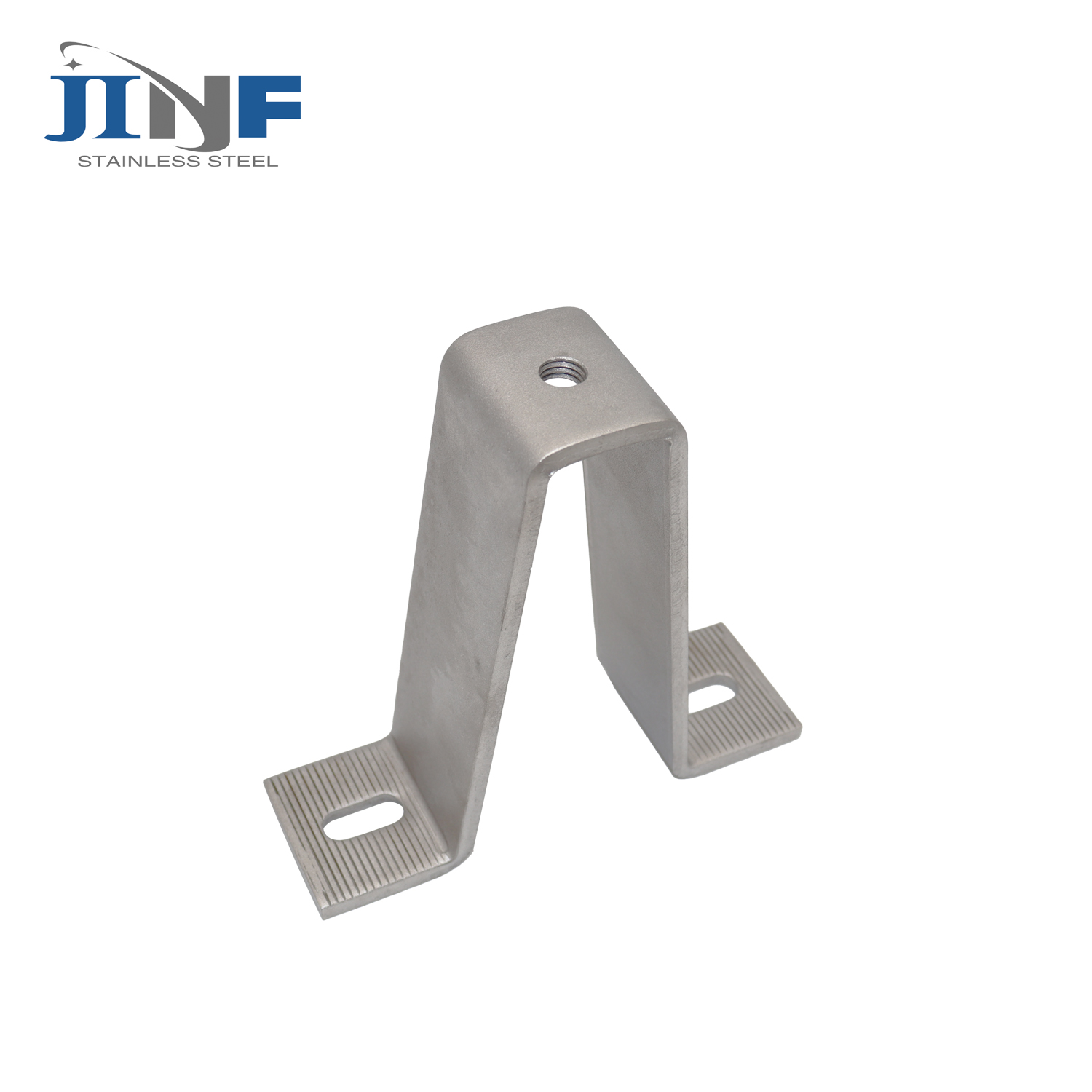

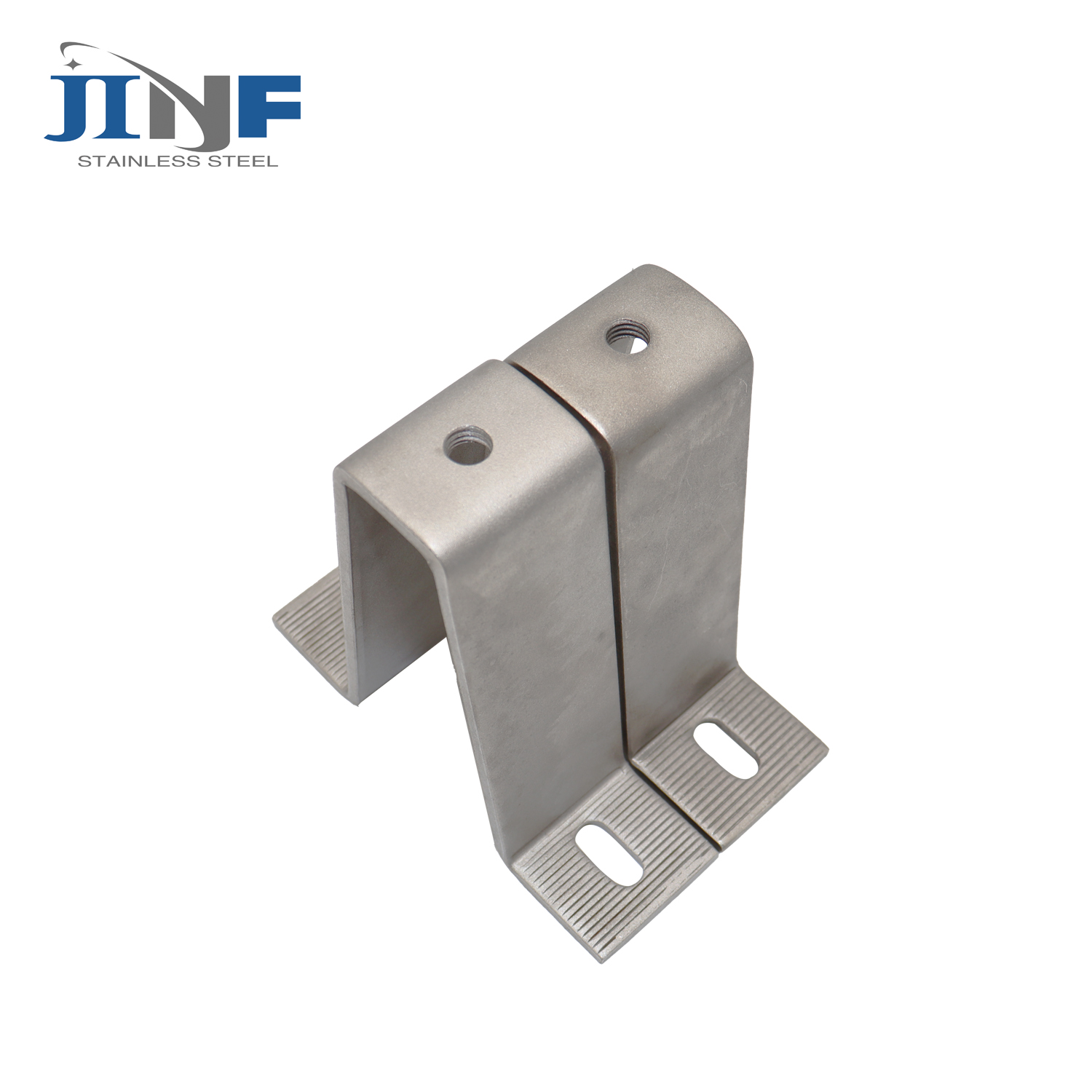

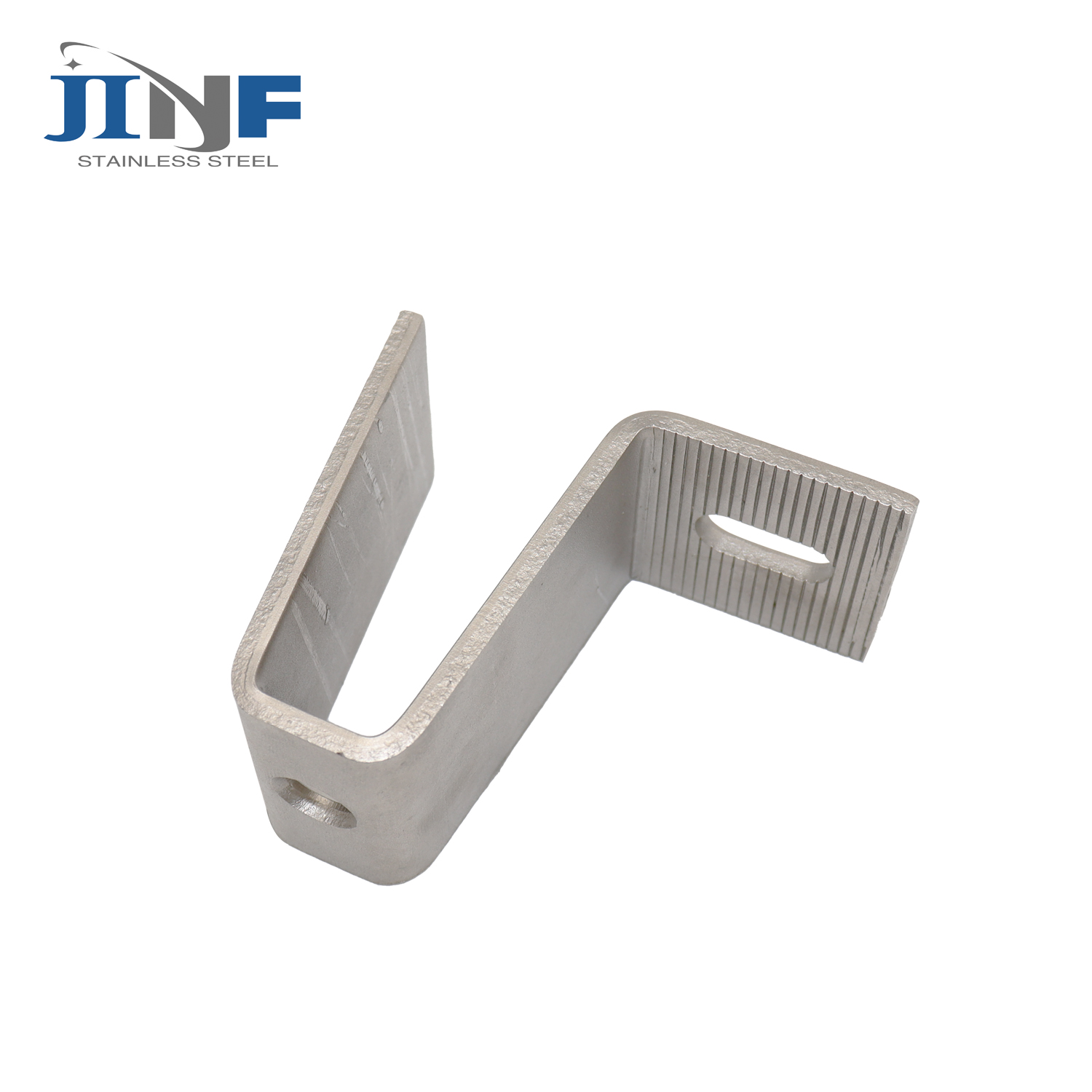

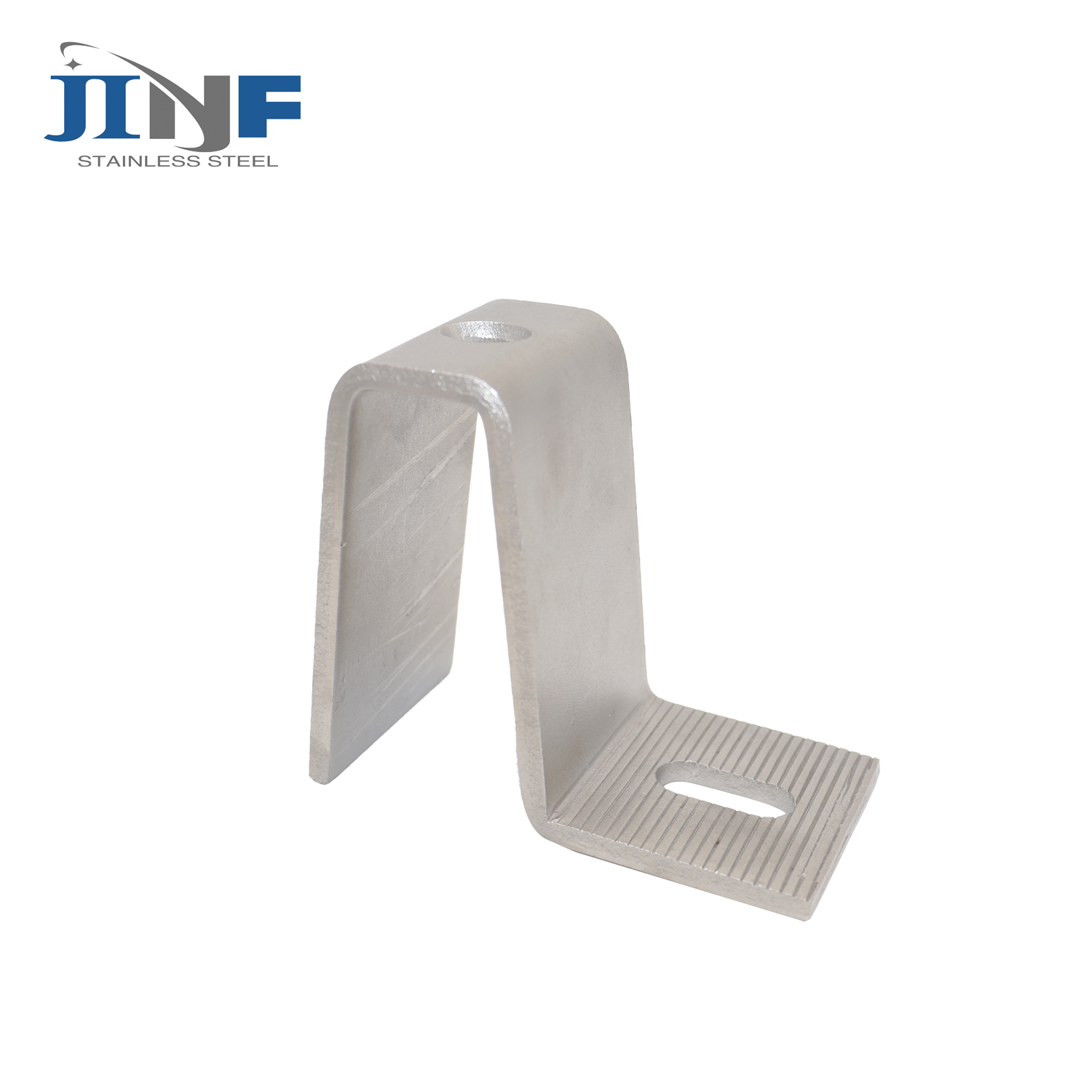

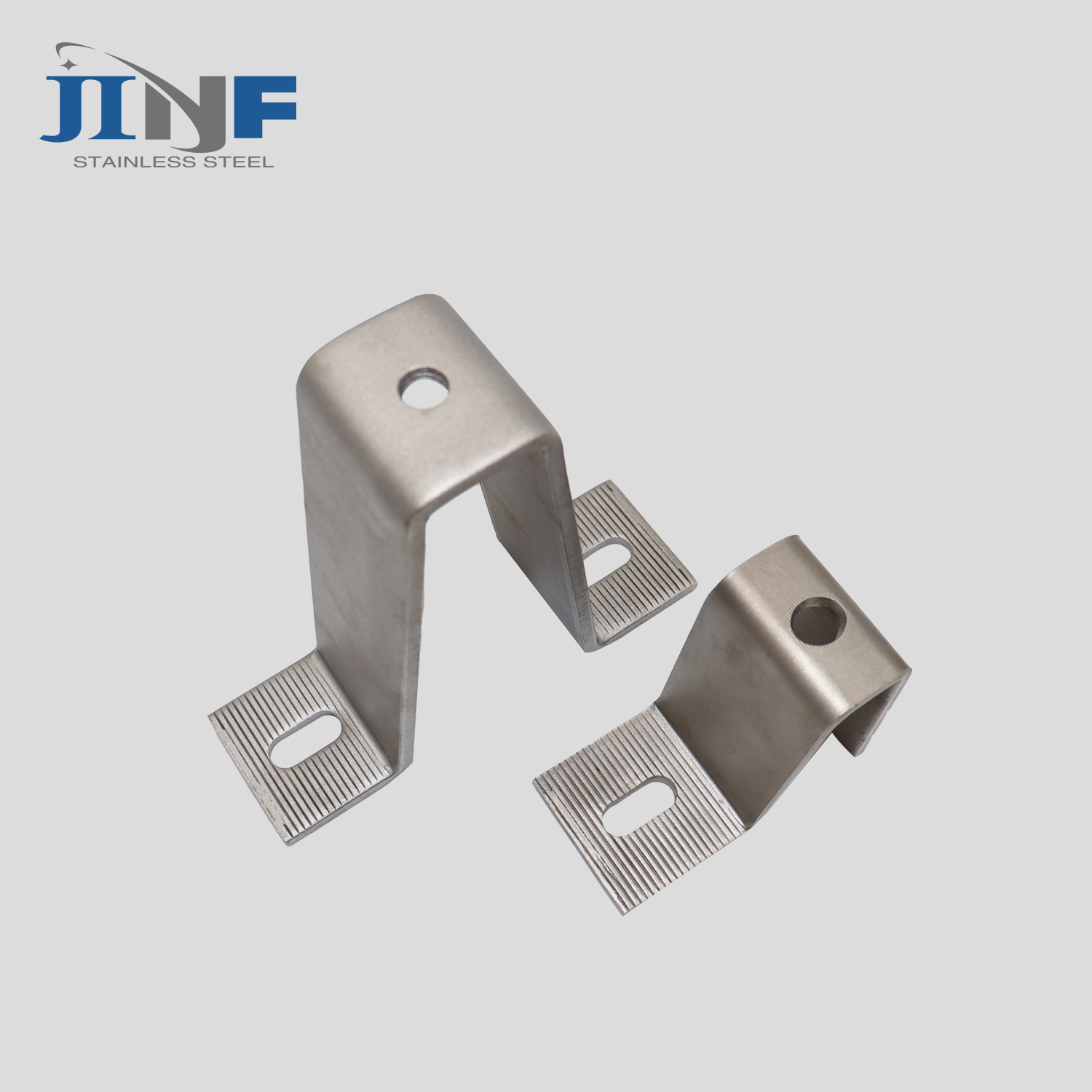

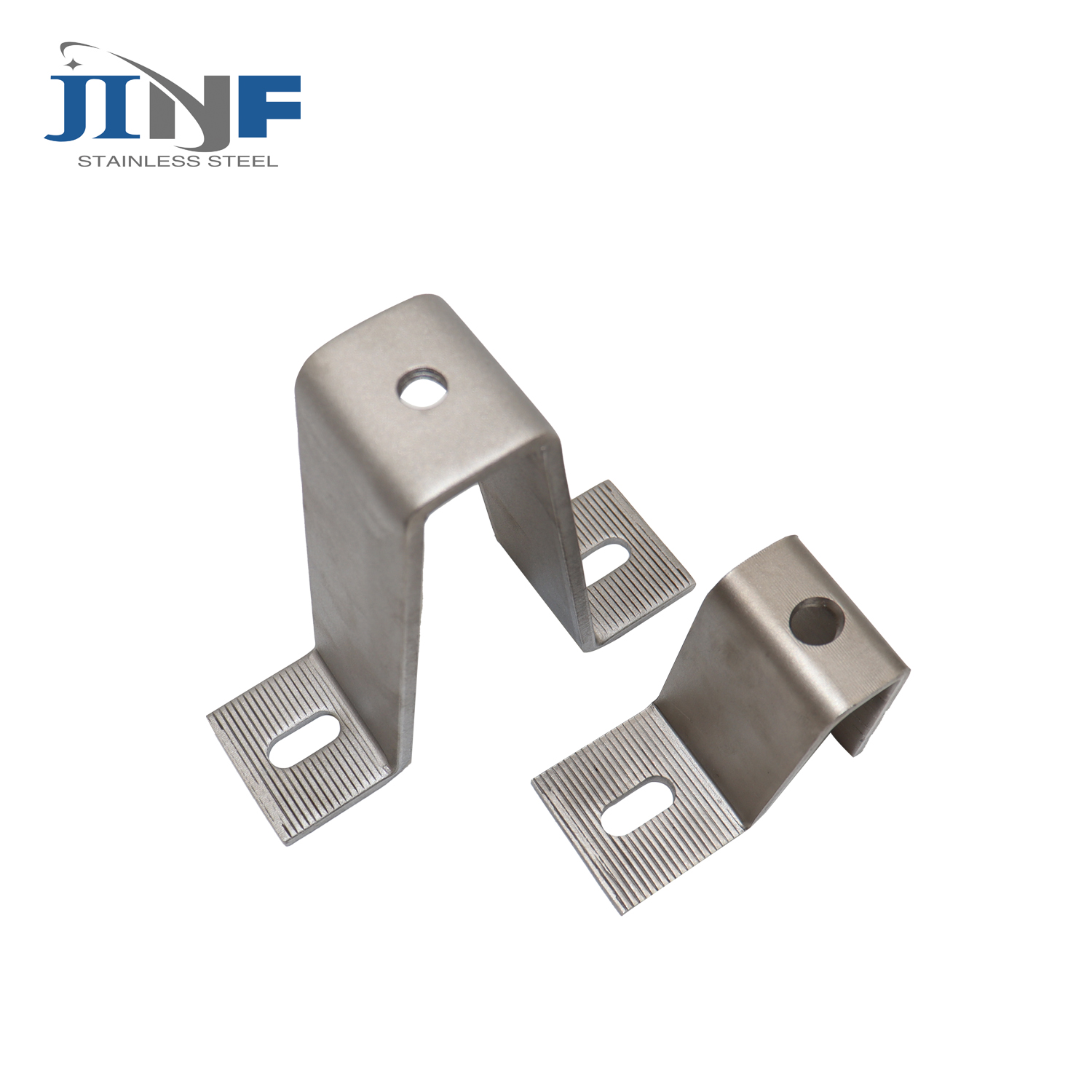

Stainless Steel 304 316 Serration Z Bracket for Stone Fixing Systems

Stainless Steel 304 316 Serration Z Bracket for Stone Fixing Systems

Material:Stainless Steel 304-A2 316-A4

Model:
JINF-MF002
Brand:
JINF
Code:
83024100

Quantity:
Availability:





Inquire Add to Basket

Product Description

Stainless Steel Serration Z Bracket for Marble Fixing Systems/Stone fixing systems/Cladding fixing systems

Serration Z Bracket Fixing Systems Introduction:

1)Direct fixing into concrete walls with expansion bolts.Indirect fixing into sub channel system with hex bolts.

2)Three dimensional adjustability-Quick and easy fixing.

3)Installation at horizontal and vertical joints

4)Recommended projection sizes up to 135mm&loads up to 800N.

Z Anchor installation at horizontal joints and vertical joints

1)Suitable for concrete walls.Anchors are fixied directly on to concrete walls with expansion bolts.

Recommended projection size between 45mm and 135mmand loads up to 800N

2)In horizontal joint installationm,slabs are pinned on the bottom and upper sides.Anchors act as load bearing carrying half the weight of the slabs above.Anchors also act as restrains,holding the slabs below and restraing against wing suction and pressure.

3)In vertical joint installation slabs are pinned on the left and right sides.Anchors on the botton are load-bearing anchors carring the whole weight of the slab.Half the weight of the slab on the left and half the weight of the slab on the right.Anchors on the top are restraint anchors holding the slabs and restraning against wind suction and pressure.

4)Three-dimensional adjustability allows quick and easy installation.

Size-Thickness:3mm-20mm

Size-Height:20/30/40/50-150mm

Material:Stainless Steel

Grade:SS304,SS316,INOX304,INOX316

Finish:Polish,Pickeld

Company Certificate:ISO9001:2015

Product Certificate:Factory MTC and SGS Test report

Package:Carton packing then on wood pallet

Payment Term:TT OR LC AT SIGHT

Delivery Term:FOB,CNF,CIF,EXW

Product Code	JINF Z-03 Serration Z ANCHOR Technical Details


	Projec-	Min.	Max.	Dead	Forming	Wind	Wind	Expansion	Pin	Adj.Arm	Adj.Arm	Adj.Arm
	tion	Projec-	Projec-	Lod	Size	Pressure	Suction	Bolt Size	Size	Metric	Flating	Length
		tion	tion							Size	Thickness
	K(mm)	K –(mm)	K +(mm)	Fdw(N)	F(mm)	Fwp(N)	Fws(N)	E.b.(mm)	Ø(mm)	M(mm)	T(mm)	EAL(mm)
JINFZ01-452	45	40	55	200	10	312	219	M8x80	5	M10	3.5	60
JINFZ01-552	55	45	70		20							60
JINFZ01-752	75	60	90		40							60
JINFZ01-952	95	80	110		60							60
JINFZ01-553	55	45	70	300	20	468	328	M8x80	5	M10	3.5	60
JINFZ01-753	75	60	90		40							60
JINFZ01-953	95	80	110		60							60
JINFZ01-1153	115	100	130		80							60
JINFZ01-554	55	45	65	400	10	624	437	M8x80	5	M12	4.5	70
JINFZ01-754	75	60	90		20							80
JINFZ01-954	95	80	110		40							80
JINFZ01-1154	115	100	130		60							80
JINFZ01-755	75	60	90	500	20	780	546	M8x80	5	M12	4.5	90
JINFZ01-955	95	80	110		40							90
JINFZ01-1155	115	100	130		60							90
JINFZ01-1355	135	120	150		80							90
JINFZ01-756	75	60	90	600	20	936	655	M10x90	6	M14	5.5	90
JINFZ01-956	95	80	110		40							90
JINFZ01-1156	115	100	130		60							90
JINFZ01-1356	135	120	150		80							90
JINFZ01-758	75	60	90	800	20	1235	865	M10x90	6	M14	5.5	90
JINFZ01-958	95	80	110		40							90
JINFZ01-1158	115	100	130		60							90
JINFZ01-1358	135	120	150		80							90
Material:AISI304 & AISI316
Loads stated are working resistance loads,other sizes are available for production upon request
Bolts are provided separately

Extension Arm&Pin&Nuts

Shield Anchor

Wedge Anchor

Hex Bolt
